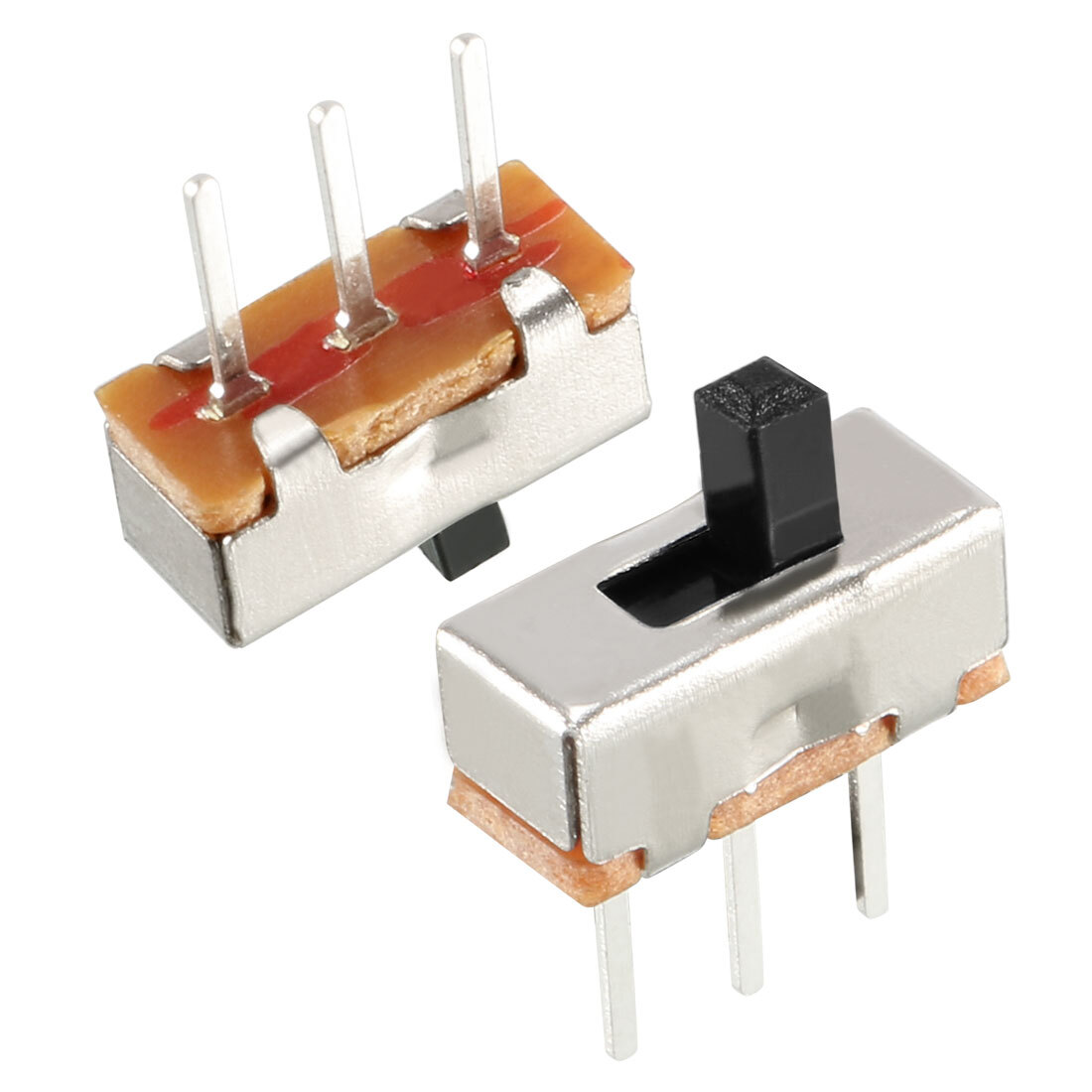

50 Pcs 3mm High Knob 3P 2 Position 1P2T SPDT Vertical Slide

Features Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 Throw, Sliding Knob Actuator. Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. Also a great component for DIY. Product Name : Slide Switch;Model : SS-12F17G3;Type : 1 Pole 2 Throw;Terminal Quantity : 3 Pcs Working Power : 0.5A 50V DC;Contact Resistance : 30m Max;Insulation Resistance : 100m Min at 500V DC;Withstand Voltage : AC 500V for 1 min Terminal Length : 4mm/ 0.16;Pin Pitch : 3mm / 0.118;Main Body Size(not include Pins and Knob) : 11 x 6 x 5mm/ 0.43 x 0.24 x 0.2(L*W*H)
