MPU6050 Accelerometer And Gyro 6DOF 3-Axis Sensor Module

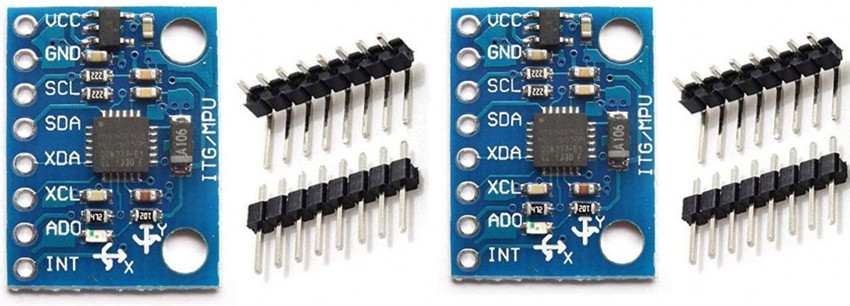

Chip: MPU-6050 Power supply: 3V-5V Communication method: Standard IIC communication protocol Chip built-in 16 bit AD converter, 16 bits of data output Gyroscope range: + 250 500 1000 2000 ° / s Acceleration range: ± 2 , ± 4 , ±8, ±16 g Pin Definition: VCC, GND, SCL, SDA, XDA, XCL, ADO, INT Pitch: 2.54mm Board size : 20mm*16mm It is very accurate, as it contains 16-bits analog to digital conversion hardware for each channel. So it captures the x, y, and z channel at the same time. Package Included: 2 X GY-521 MPU-6050 Accelerometer Gyro Sensor 2 X 8P Bend Pin Header 2 X 8P Straight Pin Header 10 X 40P Male - Female jumper Main Chip: MPU-6050; Power Supply: 3-5V (Internal Low Dropout Regulator),Built-In Chip: With Three 16-Bit Analog-to-Digital Converters (ADCs) for Digitizing the Gyroscope Outputs and Another Three Ones for Digitizing the Accelerometer Outputs. Angular Velocity Range is ±250, ±500, ±1000 and ±2000°/sec (dps) for Accurate Fast and Slow Motion, and User-Programmable Accelerator Full-Frame Sensing the Range is ±2g, ±4g，±8g and ±16g; Transmission Can Pass I2C Up to 400kHz or SPI Up to 20MHz. Easy to Use: the Measured Values of the Sensor Can Be Interrogated by the I2C Interface; The Accelerometer Can Be Operated at 3.3V and 5V. Application: MPU-6050 Sensor can be Applied to Develop Various Entertaining Applications and Systems; Nice for Projects with Gaming and Virtual Reality Devices, Navigation (for Drones and for RC Planes).
